Wi-Fi controlled smart relay Shelly 1 Mini Gen3 x2

Short description

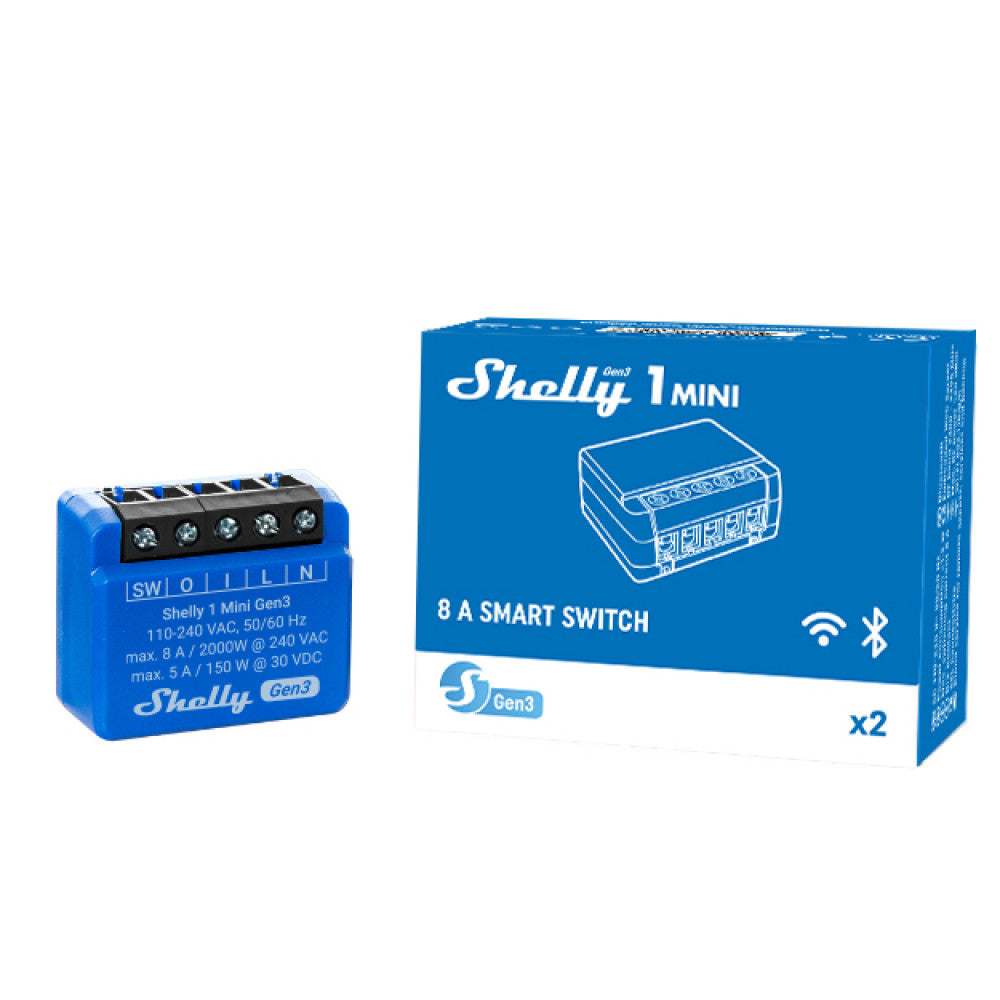

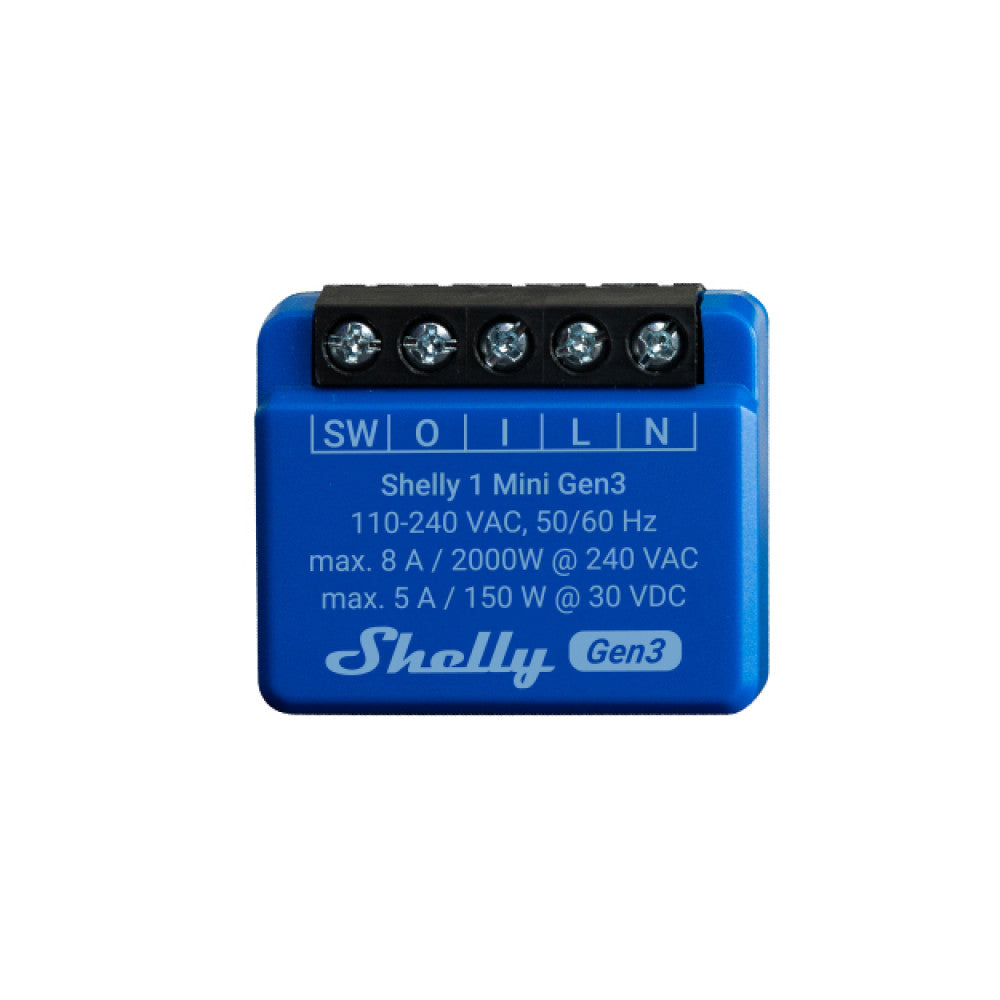

Shelly1 Mini Gen3 is a small-form-factor smart switch with potential-free contacts that allows you to remotely control electrical appliances via a mobile phone, tablet, PC or home automation system. It can operate independently on a local Wi-Fi network or can be controlled via cloud home automation services. The device is an improved version of the Shelly Plus 1 Mini with a more advanced processor and larger memory.

Shelly1 Mini Gen3 can be accessed, controlled, and monitored remotely from any location where the user has an internet connection, as long as the device is connected to a Wi-Fi router and the internet.

It can be installed in standard electrical wall boxes, behind electrical outlets and light switches, or in other areas where space is limited.

The Shelly1 Mini Gen3 Mini has a built-in web interface that allows you to monitor and control the device, as well as adjust its settings.

Main functions

• Wi-Fi connectivity: The device can connect to your home Wi-Fi network, so you can remotely monitor humidity and temperature data using a smartphone app or other compatible devices.

• Integration with smart home platforms: You can integrate Shelly 1 Mini Gen3 with popular smart home platforms, including Google, Alexa, and Samsung SmartThings. This allows for voice control and automation capabilities through these platforms.

• Bluetooth connectivity: Bluetooth and BLE gateways are available for activation purposes, which can be useful during the setup process.

• User-friendly interface: The device has a user-friendly interface with a reset button for manual interaction.

• Improved processor and memory: An improved processor and increased memory ensure greater performance.


• Wireless connectivity: The device supports Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 protocols with specified indoor and outdoor range capabilities.

• Dry contact: Can turn on and off lower voltage devices.


• BLE Gateway: A bridge between your Shelly BLU devices and the wider Shelly ecosystem. It receives Bluetooth signals and sends them to the cloud or locally to another non-Bluetooth device.

• WiFi Range Extender for IoT Devices: A WiFi extender is used to extend the coverage of a WiFi network by taking an existing WiFi signal, amplifying its strength, and then transmitting the amplified signal over a larger area.

• Difference: https://shelly-api-docs.shelly.cloud/gen2/Scripts/ShellyScriptLanguageFeatures/

• Wide range of integrations: The device can be integrated with third-party home systems, documented HTTP API, MQTT(s), web hooks over HTTP and HTTPS, UDP

• Create schedules: It is possible to schedule complex operations to be executed within a predefined time window. Users can specify time windows based on date, time of day, day of the week, hours, minutes, and seconds
