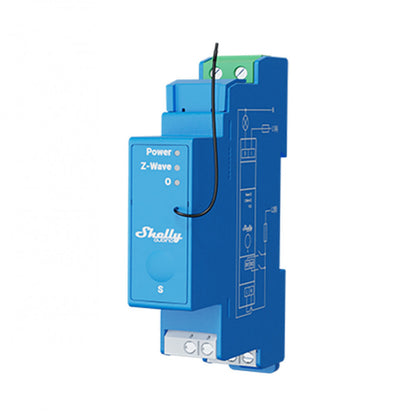

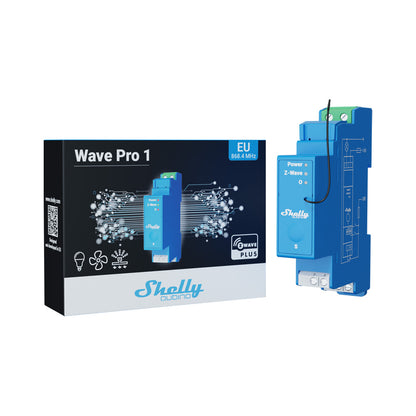

1-channel DIN rail smart switch with energy measurement Shelly Wave PRO 1

Short description

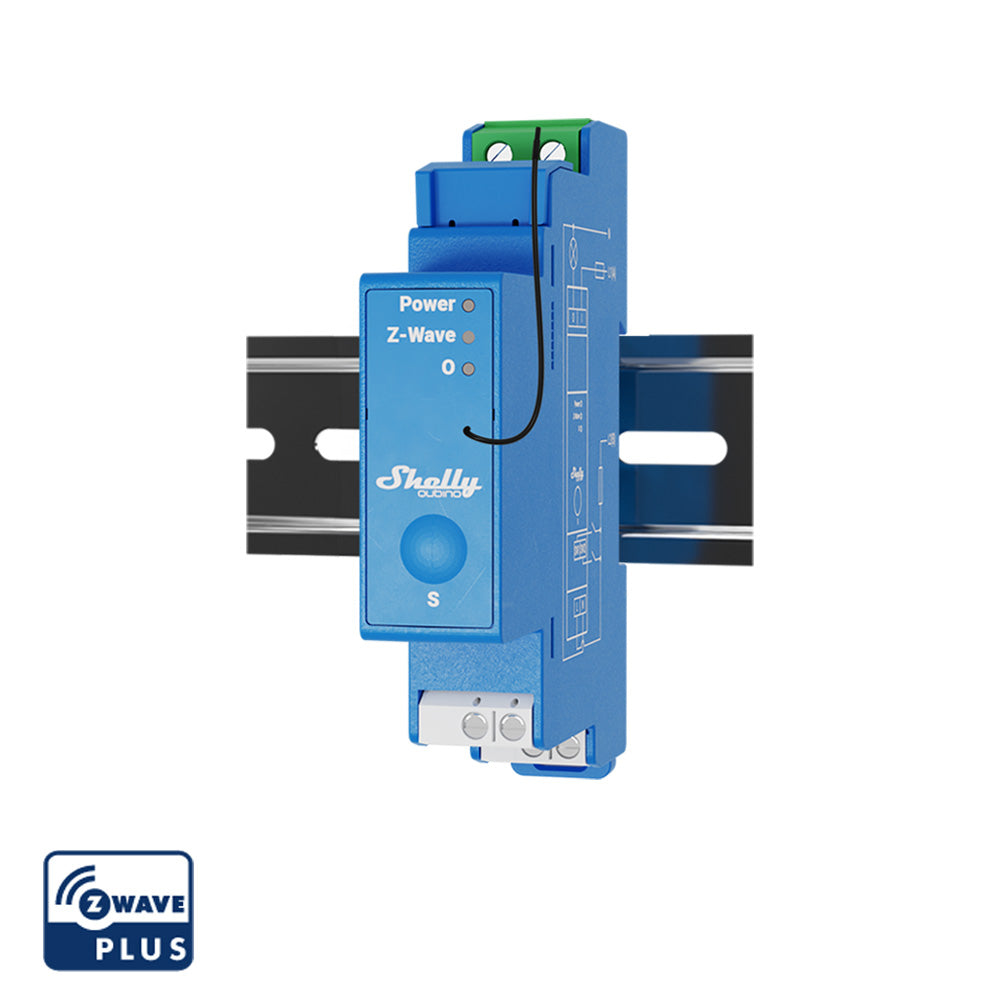

The device is a DIN rail mounted smart switch with potential free contacts. It controls the on/off function of a single electrical device with a load not exceeding 16 A. It is compatible with switches (by default) and push buttons.

The screwdriver is connected to the input terminal SW (SW1)

If SW (SW1) is configured as a switch (by default), each switch toggle will change the state of output O (O1) to the opposite - on, off, on, etc.

• To change the switch position once: Change the state of output O (O1) to the opposite state and send a command to the associated devices of groups 2 and 3 (see the "Z-Wave association" section).

• Toggle switch twice: If the delay between the first and second press is less than 500 ms, it is interpreted as “Toggle switch twice”. Send the command to the associated devices (regulators, locks,….) in the associated groups 2 and 3 (see section Z-Wave association )

Switch-memory connected to input terminal SW (SW1)

If SW (SW1) is configured as switch memory, then:

• Switching to a closed switch-memory contact: Change the state of output state O (O1) to the on state and send a command to the associated devices of groups 2 and 3 (see the section "Z-Wave association")

• Open switch memory contact: Change the output state O (O1) to Off state and send a command to the associated devices of associated groups 2 and 3 (see section "Z-Wave Association")

Button connected to input terminal SW (SW1)

If SW (SW1) is configured as a button in the device settings, each press of the button changes the output state O (O1) to the opposite - on, off, on, etc.

• 1x click : Change the output state O (O1) to the opposite and send a command to the associated devices of the 2nd and 3rd associated groups (see section Z-Wave association )

• 2x click : if the delay between the first and second click is less than 500 ms, it is interpreted as a double click. Send the command to the associated devices (regulators, blinds,….) in the associated groups 2 and 3 (see section Z-Wave association )

• Stop : sends a command to associated devices in associated group 3 (check the "Z-Wave Association" section)

• Release : sends a command to the associated devices of group 3 (see section "Z-Wave association")
